VS-Ultra X
VS-Ultra X
Description:

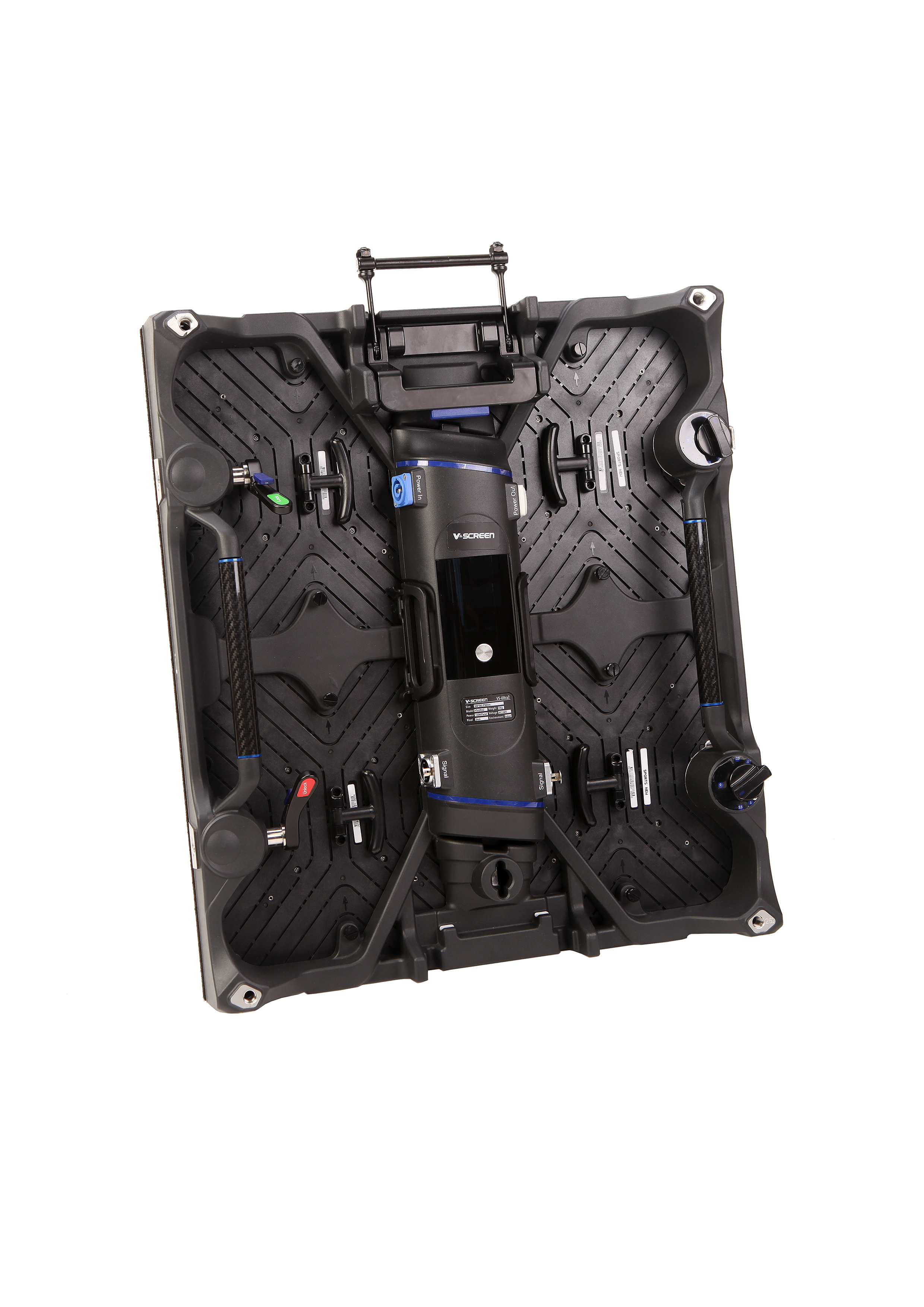

On the Ultra X screen pictures display beautifully with a screen ratio of 16:9, a high gray scale level of 16 Bit and a high refresh rate. This screen utilises industry-leading smart technology that allows for one button connection and automatic calibration. Design features of the Ultra X screen allow for full front service and maintenance and include anti-damage measures. The stages used for these screens have a customizable creative curve locks, allowing for a connection within 0.1mm accuracy to be completed in two steps.
KEY FEATURES
Industry leading
Automatic calibration
Convenient installation
Australian engineered
PRODUCT SPECIFICATIONS (ULTRA 2, ULTRA 2.6, ULTRA 2.9)
Pixel Pitch (mm): 2.23, 2.604, 2.97
Cabinet Size (WxHxD/mm): 500x562.5x80, 500x562.5x80, 500x562.5x80
Cabinet Resolution: 224x252, 192x216, 168x189
Cabinet Weight (Kg): 10, 10, 10
Brightness (Nit): 2500, 2500, 2700
Refresh Rate (Hz): ≥2880, ≥3840, ≥3840
Gray Scale (Bit): 16, 16, 16
IP Rating (Front/Rear): IP40/IP21, IP40/IP21, IP40/IP21
Max/Avg Power Consumption (W/m²): 600/200, 450/150, 660/220
Curve: ±5°, ±5°, ±5°
