6.5" Active Line Array
6.5" Active Line Array
Item Code: JT6.5LA
Description
Available in Black or White.

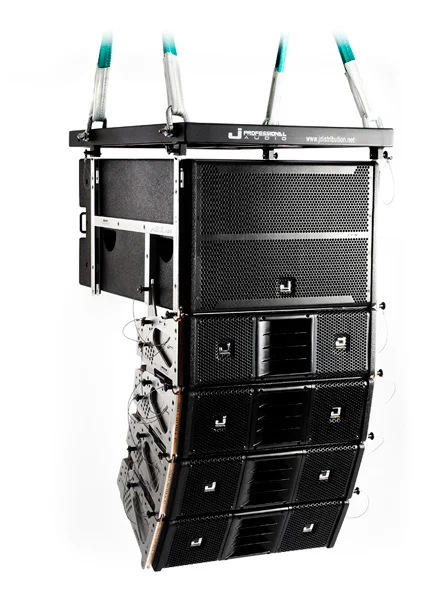

This compact line array system is comprised with one powered sub JT6.5LA and three or four pcs passive 2-way full range top speakers. It can be used either in stacked or flown configuration. Applications include both portable and permanent installations, such as band touring, cinema, church, party, conference etc. The whole system is very outstanding in mini size, light weight, but powerful and stable output
power; super high-fidelity and clear slew rate, wide and even frequency.
Key Features
CONSTRUCTION:
Two-way full range
MF unit 6.5"x2 (Φ50mm)
HF unit 1"x1 (Φ25mm)
SPECS:
Frequency response: 1pc 85Hz - 18 kHz
Sensitivity of drive: 98dB
Single Enclosure Sensitivity: (Axis 1m/1w) Full
Range: 98dB
System Sensitivity: (Axis 1m/1w)
Full Range: 104dB (3pcs)
System Sensitivity: (Axis 1m/1w)
Full Range: 107dB (4pcs)
Nominal Impedance: 8ohm
Handle Power: 180W
Peak Power: 720W
Input Sensitivity: 0.775V
Dispersion Angle Horizontal: 120° (50m)
Vertical: 15° (50m)
SUSPENSION ACCESSORIES:
Suspension Angle: 0 - 15°
Other Suspension: Steel Frame or stand (1pc/group)
Accessories: Block (1pc/group)
Canvas Belt: (2pcs/group)
MATERIAL:
Color/Finish: Environment-protected black lacquer covering
Suspension Style: Proprietary J Audio rigging system
Connector: NL4R Speakon
Front Panel Protection: Hardened spray covering round steel grille
DIMENSIONS:
Width: 548mm
Front height: 215mm
Rear height: 320mm
Packing Flight case: (4PCS V6.5LAT, 1PC JT6.5LA-B/case)
NW/GW: 120.8kg/168.8kg
Shipping Dimensions: 918x828x830mm (with wheels)
____________________________________________________
N.B. Images are displayed as a guide only. All units shown may be sold separately. Please contact our sales department for more information.
