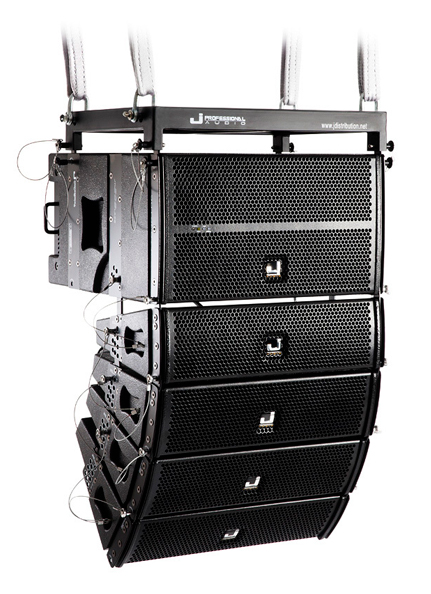

5" Active Line Array
5" Active Line Array
Item Code: JT5LA
Description
Available in Black or White.
This mini mine array system consists of powered sub JT5LA (LF: 8”*2) and passive full range speaker JT5LA (MF: 5’’*2, HF: Strip loudspeaker), can be installed by frame simply owing to the compact cabinet and light weight. This new line array system equipped High / Low independent crossover, phase, delay EQ, and volume, which can also be controlled by laptop. It is the best successful combination that one powered sub JI5LA supporting four pieces full range speaker V5LATII at the same time per side.
Key Features
CONSTRUCTION:
Two-way full range
MF unit 5"x2 (Φ25mm)
HF unit 1.4"x1 (Φ34mm)
SPECS:
Frequency response: 1pc: 130Hz - 25 kHz
Sensitivity of drive: 97dB
Single Enclosure Sensitivity: (Axis 1m/1w) Full
Range: 97dB
System Sensitivity: (Axis 1m/1w) Full
Range: 106dB (4pcs)
Nominal Impedance: 16 ohm
Handle Power: 100W
Peak Power: 400W
Input Sensitivity: 0.775V
Dispersion Angle Horizontal: 120° (50m)
Vertical: 15° (60m)
SUSPENSION ACCESSORIES:
Suspension Angle: 0 - 12°
Other Suspension: Steel Frame or stand (1pc/group)
Accessories Block: (1pc/group)
Canvas Belt: (2pcs/group)
MATERIAL:
Enclosure Material: Birch plywood
Color/Finish: Environment-protected white lacquer covering
Suspension Style: Proprietary J Audio rigging system
Front panel protection: Hardened spray covering hexangular steel grille
Connector: 1 x XLR throughout 1 x XLR
Input: 2x1/4
DIMENSIONS:
Width: 482mm
Front height: 135mm
Rear height: 47mm
Depth: 300mm
Packing Flight Case: (4PCS VL5LATII, 1PC, VL5LATII-BII/case) with wheels
NW/GW: 67.2kg/98.7kg
Shipping Dimensions: 608x675x720mm (with wheels) 608x675x593mm (without wheels)
_________________________________________________________
N.B. Images are displayed as a guide only. All units shown may be sold separately. Please contact our sales department for more information.
