JL-DT1
JL-DT1
Item Code: JL-DT1
Description
The DT series is designed to optimise the performance of high power LED lighting fixtures. With advanced RGB technology, it enables smooth colour mixing and is flicker free. It is designed to make installation simple by using standard power and DMX connectors. By using the LCD user interface, it is totally user-friendly. No complicated DIP switch setup. It can be used with the DT Range and all other products requiring 48V 350mA.
Key Features
Compact size and rugged construction
Smooth dimming control 0-100%
Internal thermal management
1 output, 36 watts
Power output: DC48V 350mA
USB port for updating software

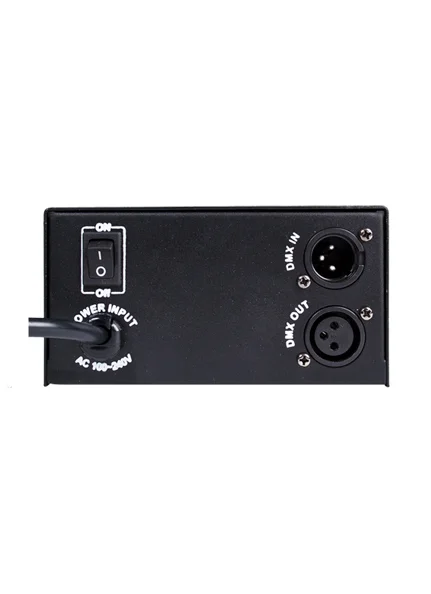

3 pin & 5 pin XLR connectors
2 x 16 digits blue LCD display
Output 350ma / 700ma
Power Consumption: 150W max.
Power Input: AC 100V-240V 50/60Hz, auto sensing
Size: 125mm x 79mm x 194mm
Weight: 2kg
3 Modes: Auto, Sound, DMX
6 DMX channels: Mode R, G, B, Strobe, Dimmer
18 preset colours
6 built-in programs
Linkable via master/slave
